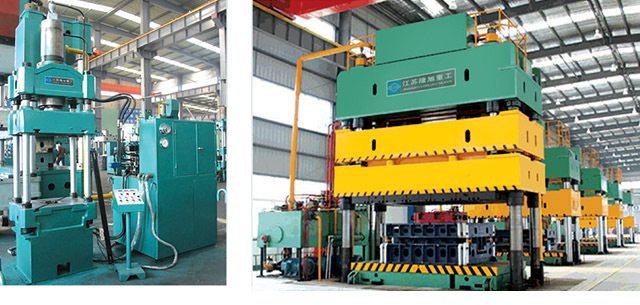

PERFORMANCE FEATURES:
1、Computer to optimize the design of the structure, the fuselage frame type can be used or four pillar type construction;

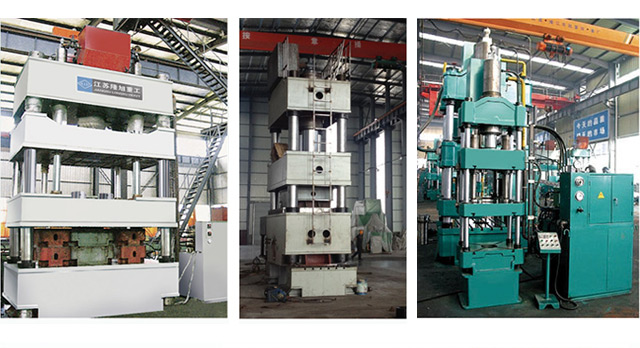

2、Frame type rod preload structure, high precision, good rigidity, the four
guide rail and orientation precision, partial load resistance is strong;
3、Four pillar type construction is simple, economic, practical;
4、Imported material cylinder sealing components, high reliability, long service life;
5、Moving workbench, convenient mould replacement;

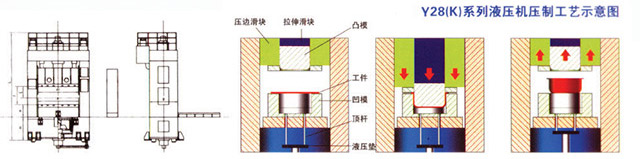

6、Tensile, compression side slide block by positioning pin etc, realize the dynamic process of single action; Machine, electricity, liquid integration of safety devices, such as cylinder inferior vena supporting circuit, oil cylinder on the superior inferior vena safety interlock circuit, etc;
7、Imported PLC control, the work is a sensitive and reliable;
8、Can choose the common control system or servo control system.
Technical parameter:
|
項目Item
|
單位
Unit
|
YLX28
-63
/100
|
YLX28
-100
/150
|
YLX28
-150
/200
|
YLX28
-200
/300
|
YLX28
-220
/315
|
YLX28
-400
/650
|
YLX28
-400
/600
|
|
公稱力
Nominal force
|
kN
|
1000
|
1500
|
2000
|
3000
|
3150
|
6500
|
6000
|
|
拉伸力
Drawing Force
|
kN
|
630
|
1000
|
150
|
2000
|
2200
|
4000
|
4000
|
|
頂出力
Knock out Force
|
kN
|
190
|
190
|
400
|
400
|
400
|
1000
|
630
|
|
壓邊力Blank-holder Force
|
kN
|
300
|
500
|
630
|
800
|
1000
|
2300
|
2000
|
|
液體最大壓力
Max pressure of liquid
|
Mpa
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
|
拉伸滑塊行程
Stroke of drawing slide
|
mm
|
600
|
600
|
700
|
800
|
800
|
1100
|
800
|
|
壓邊滑塊行程
Stroke of Blank-holder silde
|
mm
|
250
|
250
|
250
|
400
|
350
|
1000
|
720
|
|
頂出行程
Stroke of knock out cylider
|
mm
|
200
|
250
|
250
|
350
|
350
|
300
|
400
|
|
拉伸滑塊開口高度
Daylight of drawing slide
|
mm
|
1000
|
1200
|
1300
|
1400
|
1560
|
1600
|
2190
|
|
壓邊滑塊開口高度
Dylight of Blank holder slide
|
mm
|
600
|
750
|
900
|
720
|
820
|
1600
|
1300
|
|
工作臺面有效面積
Table area
|
mm2
|
720×580
|
800×800
|
1000×900
|
980×900
|
1120×1120
|
2600×1800
|
1250×1250
|
|
速度
Speed
|
空載快下行
Rapid down
|
mm/s
|
100
|
100
|
100
|
100
|
100
|
200
|
100
|
|
空載慢下行
Deceleat
down
|
mm/s
|
20
|
20
|
20
|
20
|
20
|
30
|
16
|
|
拉伸(壓制)
Pressing
|
mm/s
|
10-20
|
10-20
|
10-20
|
10-20
|
10-20
|
20
|
10-16
|
|
回程
Return
|
mm/s
|
100
|
100
|
100
|
135
|
100
|
200
|
100
|
|
頂出
Knock-out
|
mm/s
|
95
|
95
|
60
|
60
|
90
|
100
|
100
|
|
退回
Return
|
mm/s
|
220
|
220
|
180
|
180
|
200
|
200
|
200
|
|
主機輪廓尺寸
Overall dimensions
of machine
|
左右 L-R
|
mm
|
2500
|
2300
|
3800
|
3800
|
3800
|
5400
|
4300
|
|
前后 F-B
|
mm
|
1500
|
900
|
1800
|
1800
|
1800
|
3600
|
2315
|
|
距地面高度
Height
above
floor
|
mm
|
3200
|
3600
|
4400
|
4600
|
4400
|
9300
|
5240
|
|
電機功率Total power
|
kW
|
11
|
15
|
22
|
37
|
37
|
90
|
37
|
|
全機重量Total weight
|
kg
|
6000
|
8500
|
14000
|
17000
|
19000
|
101000
|
31000
|
|
備注Remark
|
mm
|
300×300
|
380×380
|
500×500
|
600×550
|
800×600
|
1600×1000
|
800×800
|
