PERFORMANCE FEATURES:
1、Computer optimized structure design, three beam four-post type structure, simple, economic and practical;
2、Adopt and cartridge valve integrated hydraulic control system, reliable
operation, long service life, small hydraulic impact, reduce the connection pipe and the leak point;
3、Independent electrical control system, reliable operation, intuitive,
easy maintenance;
4、The centralized control buttons, three operation modes of adjustment, manual and semi-automatic;
5、Through the selection of operation panel, which can realize the fixed distance and constant pressure two forming process, and have confirmed when rolling, and other functions;
6、The slider working pressure, load fast descending and slow work into schedule scope may need to adjust according to the craft;
7、Adopt common control system or servo control system.

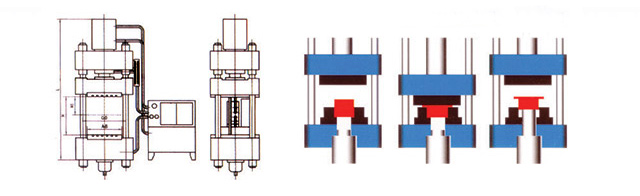

YLX32 Series four-column hydraulic press technical data
|
參數(shù)名稱 parameter
|
單位Unit
|
YLX32-40
|
YLX32-63
|
YLX32-100
|
YLX32-100E
|
YLX32-160C
|
YLX32-200A
|
YLX32-315A
|
YLX32-400
|
YLX32-500B
|
YLX32-500C
|
YLX32-630
|
|
公稱力 Rated pressure
|
KN
|
400
|
630
|
1000
|
1000
|
1600
|
2000
|
3150
|
4000
|
5000
|
5000
|
6300
|
|
頂出力 Knock-out force
|
KN
|
120
|
190
|
190
|
400
|
400
|
400
|
630
|
630
|
1000
|
1000
|
1000
|
|
液體最大工作壓力
Max. hydraulic pressure
|
MPA
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
|
滑塊最大行程
Stroke of Slide
|
MM
|
400
|
500
|
600
|
600
|
700
|
700
|
800
|
800
|
900
|
900
|
900
|
|
頂出活塞最大行程
Stroke of knock-out piston
|
MM
|
150
|
160
|
200
|
200
|
250
|
250
|
300
|
300
|
350
|
350
|
350
|
|
開口高度 Daylight
|
MM
|
600
|
700
|
900
|
900
|
1000
|
1100
|
1200
|
1300
|
1500
|
1500
|
1500
|
|
滑塊滑行速度 Speed of slide
|
空載下行 Empty
descending
|
MM/S
|
100
|
100
|
100
|
120
|
120
|
100
|
100
|
100
|
100
|
100
|
100
|
|
工作 Pressing
|
MM/S
|
10
|
25
|
10
|
16
|
10
|
12
|
12
|
12
|
12
|
12
|
12
|
|
回程 Return
|
MM/S
|
52
|
80
|
50
|
80
|
50
|
80
|
60
|
45
|
80
|
80
|
50
|
|
工作臺有效尺寸Effective area of table
|
左右L-R
|
MM
|
500
|
560
|
720
|
750
|
1000
|
1000
|
1250
|
1250
|
1400
|
2200
|
1500
|
|
前后F-B
|
MM
|
460
|
500
|
580
|
640
|
800
|
900
|
1200
|
1200
|
1400
|
1400
|
1500
|
|
機器外型尺寸
Overall dimensions of machine
|
左右 L-R
|
MM
|
1800
|
2400
|
2500
|
2700
|
2700
|
2825
|
3235
|
3235
|
4060
|
6500
|
4200
|
|
前后F-B
|
MM
|
1200
|
1400
|
1500
|
1700
|
1700
|
1500
|
1500
|
1500
|
1800
|
1800
|
2000
|
|
地面以上高Height above
ground
|
MM
|
2600
|
3100
|
3150
|
3400
|
3400
|
3725
|
4295
|
4500
|
4995
|
4740
|
5600
|
|
電機功率 Motor power
|
KW
|
4
|
7.5
|
7.5
|
11
|
11
|
15
|
18.5
|
22
|
37
|
37
|
45
|
|
參數(shù)名稱parameter
|
單位Unit
|
YLX32-800
|
YLX32-1000
|
YLX32-1250
|
YLX32-1600
|
YLX32-2000
|
YLX32-2500
|
YLX32-3000
|
YLX32-3500
|
YLX32-4000
|
YLX32-5000
|
|
公稱力 Rated pressure
|
KN
|
8000
|
10000
|
12500
|
16000
|
20000
|
25000
|
30000
|
35000
|
40000
|
50000
|
|
頂出力 Knock-out force
|
KN
|
1600
|
1600
|
2000
|
2000
|
2000
|
2500
|
2500
|
3150
|
4000
|
8000
|
|
液體最大工作壓力Max. hydraulic pressure
|
MPA
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
|
滑塊最大行程Stroke of Slide
|
MM
|
900
|
900
|
900
|
1000
|
1200
|
900
|
1200
|
1200
|
900
|
900
|
|
頂出活塞最大行程Stroke of knock-out piston
|
MM
|
450
|
450
|
450
|
300
|
300
|
450
|
450
|
450
|
360
|
350
|
|
開口高度 Daylight
|
MM
|
1600
|
1600
|
1600
|
1800
|
2000
|
1800
|
1800
|
2500
|
1500
|
1500
|
|
滑塊滑行速度Speed of slide
|
空載下行Empty descending
|
MM/S
|
100
|
80
|
80
|
100
|
100
|
100
|
120
|
120
|
100
|
100
|
|
工作 Pressing
|
MM/S
|
8
|
10
|
8
|
10
|
10
|
10
|
10
|
10
|
8
|
8
|
|
回程Return
|
MM/S
|
50
|
50
|
50
|
80
|
70
|
60
|
80
|
100
|
60
|
80
|
|
工作臺有效尺寸Effective area of table
|
左右 L-R
|
MM
|
1800
|
2000
|
2000
|
2400
|
2500
|
2500
|
4000
|
4000
|
5000
|
5000
|
|
前后 F-B
|
MM
|
1600
|
1800
|
1800
|
2000
|
2000
|
2380
|
2500
|
1500
|
1600
|
1600
|
|
機器外型尺寸 Overall dimensions of machine
|
左右 L-R
|
MM
|
4800
|
5200
|
5200
|
6500
|
6500
|
6600
|
9000
|
8000
|
12100
|
12100
|
|
前后 F-B
|
MM
|
4000
|
4300
|
4300
|
4500
|
4500
|
4500
|
4600
|
2500
|
3700
|
3700
|
|
地面以上高Height above ground
|
MM
|
6000
|
6450
|
6450
|
6500
|
6800
|
8450
|
10000
|
11000
|
7650
|
7850
|
|
電機功率 Motor power
|
KW
|
45
|
60
|
60
|
≈120
|
≈145
|
≈145
|
≈180
|
≈250
|
≈350
|
≈450
|
